$1,000.00
It is applied to the installation, maintenance, and cleaning ofhigh-altitude equipment such as construction sites, factories,warehouses, grain depots,stations, hotels, airports, docks, gasstations, stadiums, power plants, elevated pipelines, etc. lt is alsoused for maintenance oflifting equipment, outdoor power facili-ties, and steel structure factories.

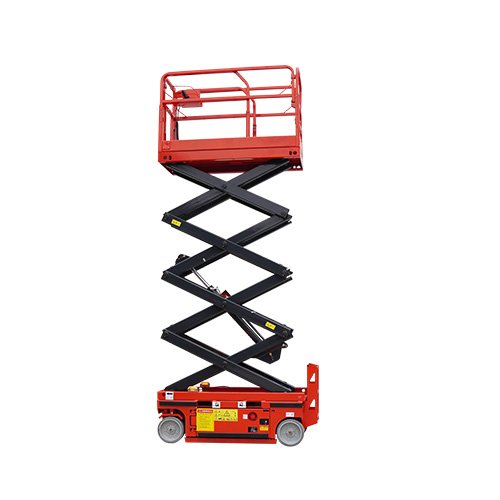

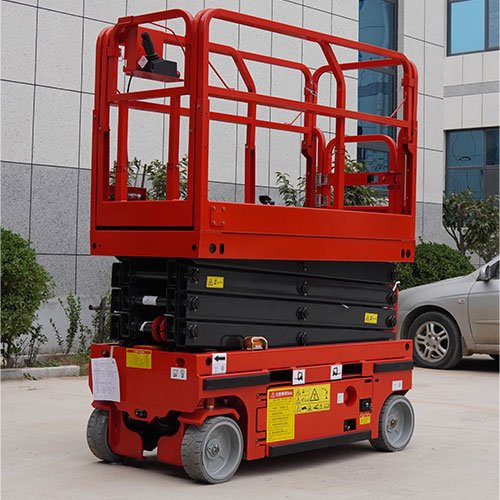

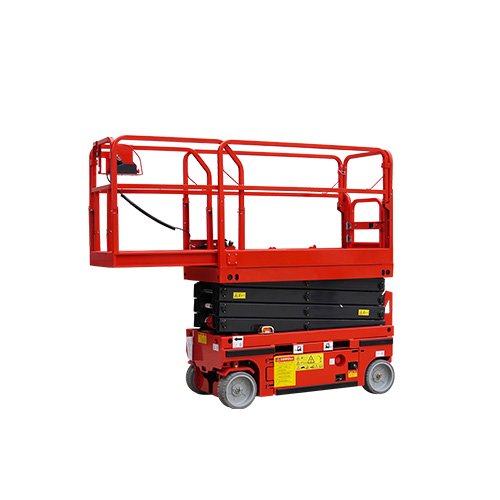

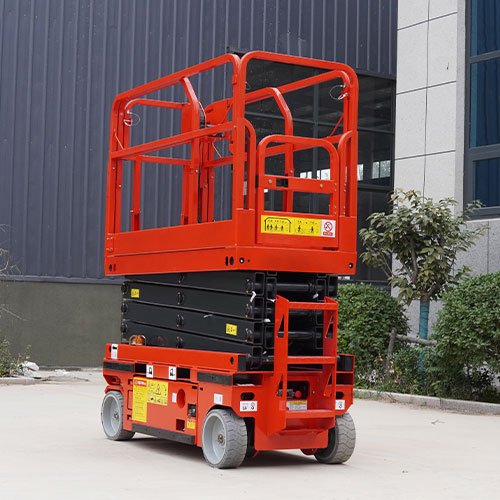

Electric driven self propelled scissor lift is one practical lift machine used in all kinds of aerial works.
Electric scissor lift can be operated by automatic walking, turning and lifting. Electric driven self propelled scissor
lift is famous for its high efficient performance, very low failure rate and sensitive speed adjustment ability.
Motor drive supplies all power for moving and lifting. There are two electric motors. One is driving motor and the
other is lifting motor. It is moved by electric motor and lifted by hydraulic system.
| Parameters of 6m mini self-propelled vehicle | ||
| Project | unit | Basic parameters |
| Safe working load | Kg | 230 |
| Extended platform safe working load | Kg | 113 |
| Maximum working height (H2) | m | 7.8 |
| Maximum platform height (H1) | m | 5.8 |
| Overall machine length | mm | 1860 |
| Overall machine width | mm | 760 |
| Overall height (fence not folded) | mm | 2180 |
| Overall height (fence folded) (H) | mm | 1840 |
| Working platform size | mm | 1670*740 |
| Platform extension size | mm | 900 |
| Minimum ground clearance (folded state) | mm | 86 |
| Minimum ground clearance (lifting state) | mm | 16 |
| Wheelbase | mm | 1085 |
| Minimum turning radius (inner wheel) | mm | 0 |
| Minimum turning radius (outer wheel) | mm | 1640 |
| Lifting motor | V/Kw | 24/3.3kw |
| Machine running speed (folded state) | Km/h | 3.5 |
| Machine running speed (lifting state) | Km/h | 0.8 |
| Ascent/descent speed | sec | 18/22 |
| Battery | V/Ah | 4×6/170 |
| Charger | V/A | 24/25 |
| Maximum climbing ability | % | 25 |
| Maximum allowable working angle | 。 | 2月3日 |
| Tire | mm | Φ305*100 |
| Machine weight | Kg | 1640 |
| Product safety features | ||
| Proportional control | Automatic braking system | Buzzer |
| Automatic pothole protection system | Emergency descent system | Trumpet |
| Platform self-locking door | Emergency stop button | Work Schedule |
| Full travel | Oil pipe explosion-proof system | Safety maintenance support rod |
| Non-marking tires | Fault diagnosis system | Standard transport forklift holes |
| 4×2 drive | Tilt protection system | Folding fence |
| Extended platform | Charging protection system | Strobe Light |
