$7,000.00
epa approved 4 wheel oem avant 1.6ton mini small telescopic boom front end wheel loader

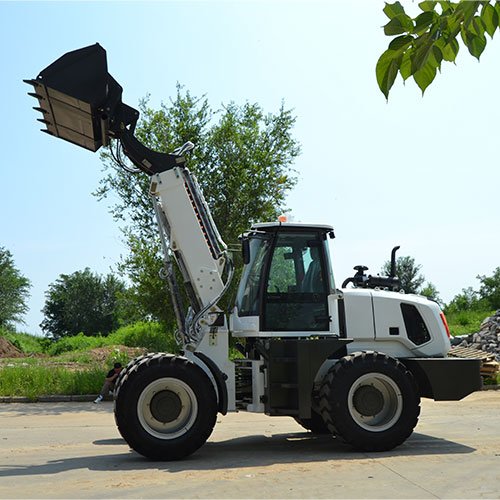

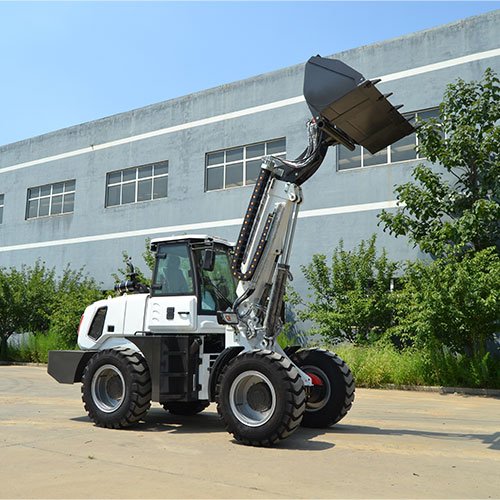

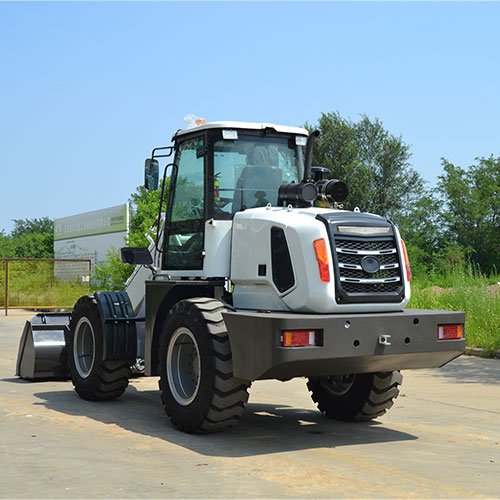

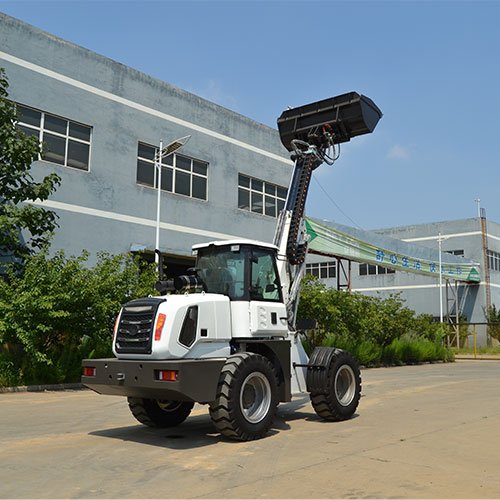

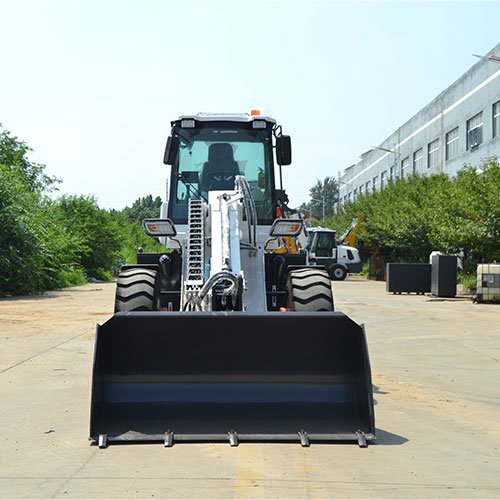

Telescopic boom loader is a new type extend telescopic loader,it can extend it arm when it need high height ,and it can change
more attahcment,for example ,you can use pallet fork,4 in1 bucket,grasp fork,grass fork and so on.
Telescopic boom loader is designed for the farmer and agriculture,it can help the farmer inprove the work effiency.
Our advantages
1.the turning radius is small and the angle is large
2. Roll over cab is provided as standard for easy maintenance
3. Tripod structure, front frame, easy and stable operation
4. Air filtration, good filtration effect
5. Fast lifting speed and high work efficiency
6. The engine can meet the emission requirements of different countries
7. Different assistive devices can be selected to achieve different functions
8. The pressure tap should be used to eliminate the fault effectively
Torque converter
Four-wheel drive system
Four-wheel steeringthree steering mode
The fork leveling adopts the automatic flow compensation technology to realize the automatic control of the level of the fork, to ensure the stability and safety of the high fork lift
With the frame transverse leveling function, strong site adaptability, to meet the needs of complex working conditions
Four-wheel drive, with two-wheel steering, four-wheel steering and crab line steering mode, strong off-road ability, adapt to different operating occasions
Using all-electric control gearbox and axle, compact structure, high transmission efficiency
Advanced human-computer interaction system, instrument monitoring and alarm system has complete functions, easy to operate
Can be configured with high-altitude platform, bucket and other machines and tools, to meet the personalized needs of users
| TL2500 telescopic loader | |
| 1.0 Engine | |
| (1) Brand/Model: | Yunnei YN33GBZ |
| (2) Type: | In-line arrangement, water-cooled, four cylinder, turbocharged diesel engine |
| (3) Rated Power: | 65KW |
| (4) Optional Model: | YN38GBZ engine
EPA3 YANMAR engine;EPA3 CUMMINS engine;EPA4 |
| 2.0 Overall Dimensions | |
| (1) Overall Length: | 6500mm |
| (2) Overall Width: | 2000mm |
| (3) Overall Height: | 2860mm |
| (4) Bucket hinge pin Height: | 4700mm |
| 3.0 Transmission System：
Gearbox+Hydraulic converter + Drive shaft + Hub reduction axle |
|
| 4.0 Bucket： | |
| (1) Capacity: | 1.2m³ |
| (2) Width: | 2100mm |
| (3) Type: | Heavy-duty bolt on teeth |
| (4) Max. Load: | 2500kg including bucket or attachment |
| 5.0 Operating Specifications | |
| (1) Steering System: | Articulated hydraulic steering |
| (2) Driving System: | Four wheel drive |
| (3) Hydraulic quick release | Yes |
| (4) Mechanical pilot joystick | Yes |
| (5) Steady rise | Yes |
| 6.0 Brake System | |
| (1) Service Brake: | Four wheel disc brake |
| (2) Parking Brake: | Disc brake |
| 7.0 Tyre | |
| (1) Model: | 16/70-20 Herringbone Tyre |
| (2) Size: | Width: 380mm Diameter: 1075mm |
| 8.0 Wheel base: 2550mm | |
| 9.0 Track: 1600mm | |
| 10.System pressure: | 20Mpa |
| 11. Weight: | 6000KG |
