$6,000.00

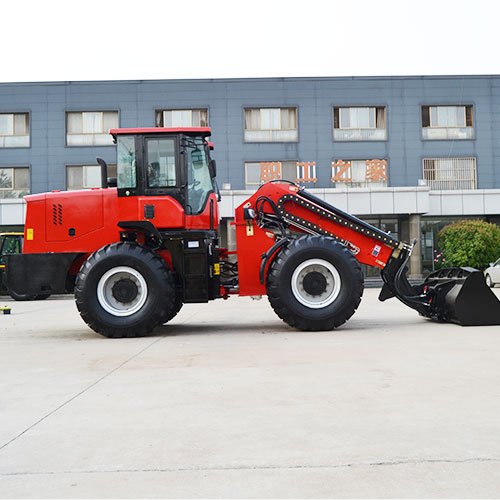

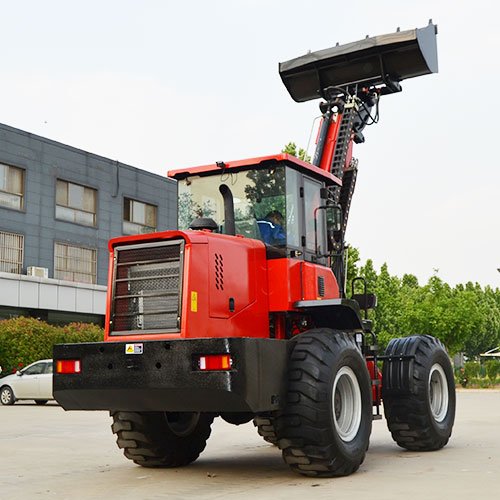

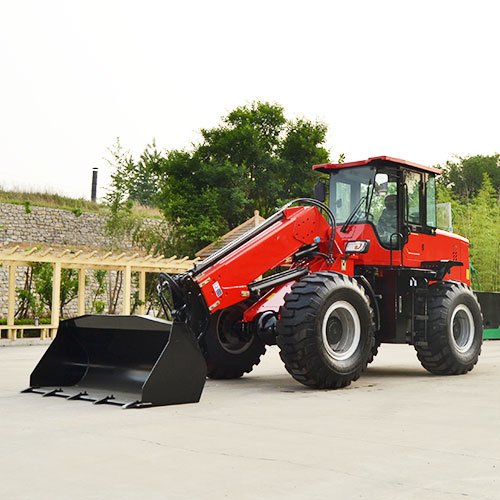

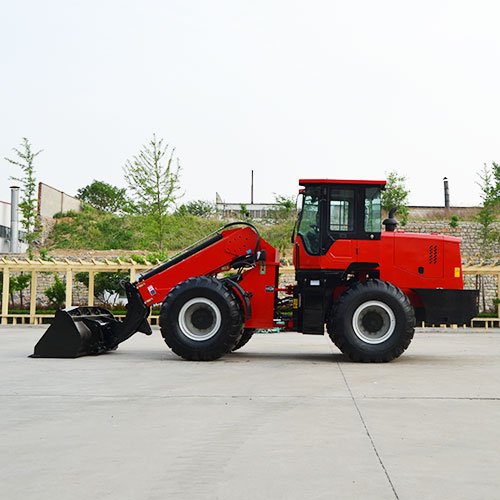

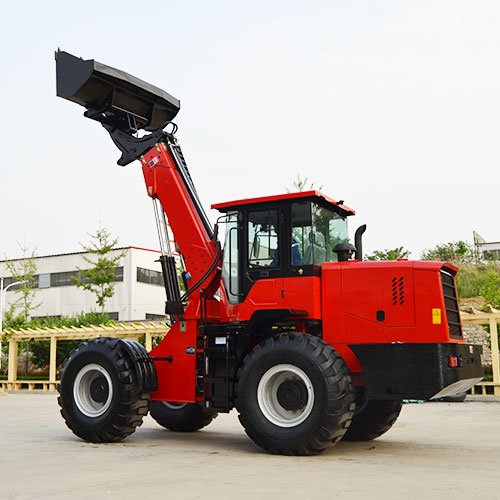

epa approved 4 wheel oem avant 1.6ton mini small telescopic boom front end wheel loader
Telescopic boom loader is a new type extend telescopic loader,it can extend it arm when it need high height ,and it can change
more attahcment,for example ,you can use pallet fork,4 in1 bucket,grasp fork,grass fork and so on.
Telescopic boom loader is designed for the farmer and agriculture,it can help the farmer inprove the work effiency.
Our advantages
1.the turning radius is small and the angle is large
2. Roll over cab is provided as standard for easy maintenance
3. Tripod structure, front frame, easy and stable operation
4. Air filtration, good filtration effect
5. Fast lifting speed and high work efficiency
6. The engine can meet the emission requirements of different countries
7. Different assistive devices can be selected to achieve different functions
8. The pressure tap should be used to eliminate the fault effectively
Torque converter
Four-wheel drive system
Four-wheel steeringthree steering mode
The fork leveling adopts the automatic flow compensation technology to realize the automatic control of the level of the fork, to ensure the stability and safety of the high fork lift
With the frame transverse leveling function, strong site adaptability, to meet the needs of complex working conditions
Four-wheel drive, with two-wheel steering, four-wheel steering and crab line steering mode, strong off-road ability, adapt to different operating occasions
Using all-electric control gearbox and axle, compact structure, high transmission efficiency
Advanced human-computer interaction system, instrument monitoring and alarm system has complete functions, easy to operate
Can be configured with high-altitude platform, bucket and other machines and tools, to meet the personalized needs of users
| TL4000 telescopic loader | ||
| Engine Details | Engine Brand/Model | WEICHAI/ WP6G175E22 |
| Engine power | 129KW | |
| Number of cylinders | 6 | |
| Cooling way | Water cooling | |
| Engine type | Electronic Unit Injector Engine | |
| Optional engine | 6BT5.9-C150 CUMMINS
EURO5 YUCHAI EPA4 CUMMINS/FPT |
|
| Bucket | Bucket Capacity | 2m³ |
| Bucket width | 2300mm | |
| Bucket type | Heavy-duty teeth | |
| Overall Dimensions | Overall Length | 7800mm |
| Overall Height | 3230mm | |
| Overall Width | 2300mm | |
| Max. Discharge height: | 5400mm | |
| Min. Discharge height: | 4000mm | |
| Optional Max. discharge height: | 7000mm
9100mm |
|
| Tyre | Model | G2 pattern 20.5-25 Tyre G2 |
| Size | Width: 520mm
Diameter:1490mm |
|
| Transmission System | Hydraulic converter + gearbox + drive shaft + hub reduction axles | |
| Brake System | Service Brake | Four Wheel Disk brake |
| Parking Brake | Hand operated | |
| Braking Type | Air Brake | |
| Steering System | Articulated hydraulic steering | |
| Driving System | Four wheel drive | |
| Hydraulic quick release | Yes | |
| Hydraulic pilot joystick | Yes | |
| Steady rise | Yes | |
| Max. Load | 4000kg including bucket or attachment | |
| Wheelbase | 2845mm | |
| Track | 1825mm | |
| Speed | 0-38km/H | |
| Weight | 10000kg(with bucket) | |
| System Pressure | 19Mpa | |
| Hydraulic Output | 184L/min | |
| Fuel Tank Capacity | 175L | |
| Hydraulic Tank Capacity | 175L | |
